COSMIC SPACE CASE // My live ambient performance system (Patreon)

AUDIO EXAMPLES ARE UPLOADED AS AN ATTACHMENT TO THIS POST. CLICK THOSE TO LISTEN / DOWNLOAD. ALTERNATIVELY LISTEN / DOWNLOAD ON GOOGLE DRIVE HERE - http://bit.ly/CosmicAudioExamples

HERE'S THE PODCAST -->  http://bit.ly/EM008 <-- GO LISTEN

First of all hello to my Patreon supporters, your support goes a long way to keep the train moving.

Second hello to everyone that isn't a supporter (maybe consider it if you like what I do) that came here from the show notes on the latest episode (008) of the Esoteric Modulation podcast.

I wanted to create a post here as a reference for high quality audio examples, images and links for my live performance case.

In episode 008 of Esoteric Modulation we go through my live case from the original idea, through to key modules, layout, signal flow and sub patches along with examples of sub sections I could improvise and perform around.

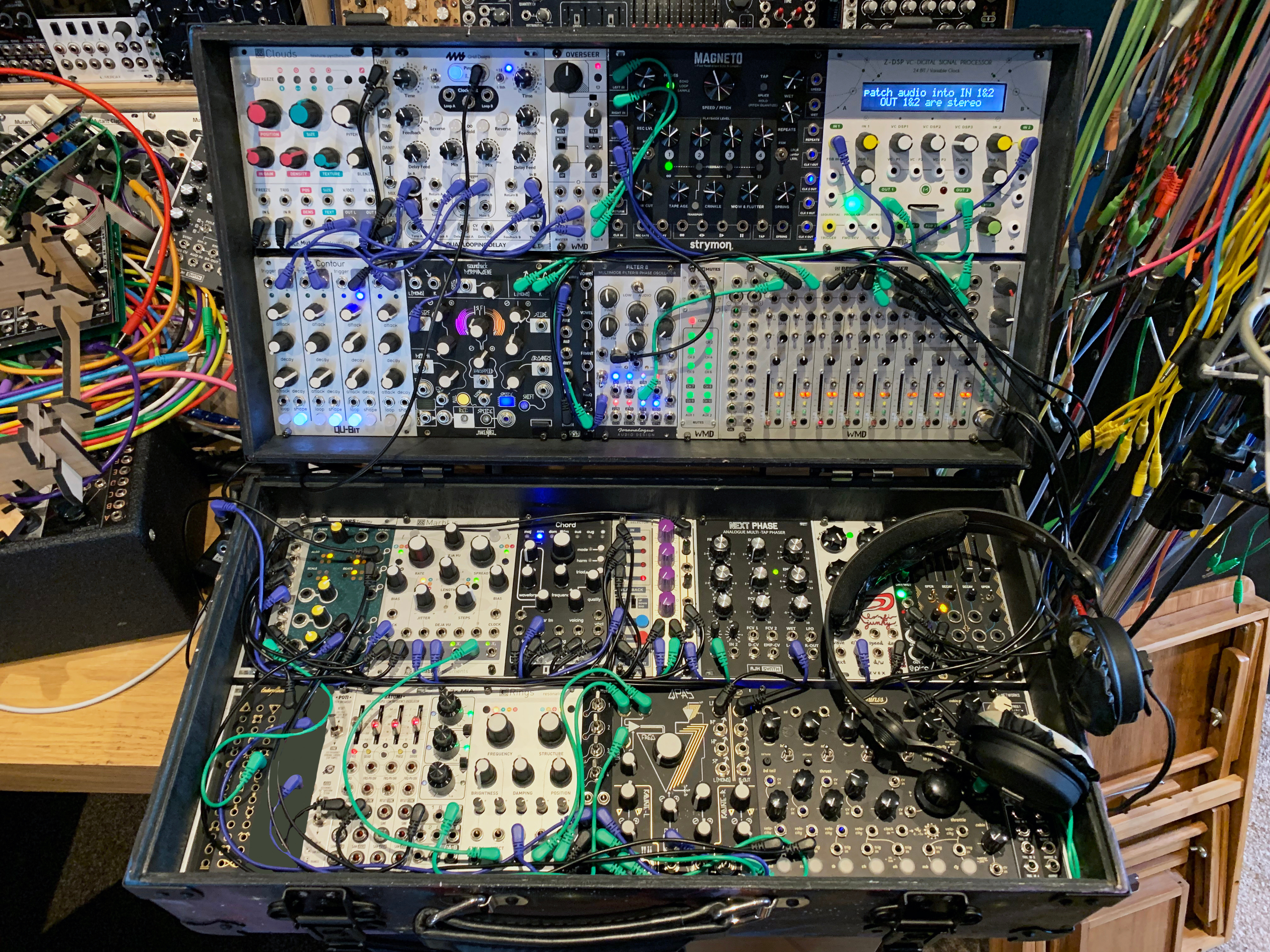

At the top of this post is an image of the final case. There's two huge advantages in terms of set up to perform here ... FIRST the gaps between the rails allowed me to push the cables down between the rails to get those out of the way and SECOND Tendrils, my god Tendrils ... I LOVE these cables for keeping things clear and clutter free. Not a single cable tidy, velcro or tie wrap in sight to bundle cables. Just multiple lengths of Tendrils cables all flat and low profile below the knobs and out of the way.

THE CASE

The case is my COSMIC SPACE CASE because, well ... it's all cosmic and spacey innit! It's a Lamond Design 12U DIY case painted by an artist fairly local to me called Tim Needham. He used to be part of the graffiti scene around here that surrounded hip hop groups I was involved in and he did a great job painting this case based on a few reference images I sent him. Check out Tim on Instagram here - https://www.instagram.com/tim_needham_tattoo/ - he's mainly doing tattoos these days.

THE POWER

The case is powered by the Tiptop Audio Studio Zeus powered bus boards and Cincon power bricks. Choosing to use this was simple, I know it's quiet and reliable from lots of friends that use it and knowing Ross Lamond had fitted hundreds of these boards in his custom case builds and not had a complaint from a customer certainly pushed things over the edge towards using this power confidently. It's worked really well, with various configurations of this case. There's a powered bus board per row and each side of the case has it's own power supply. So two power bricks for the two 6U sections.

THE CABLES

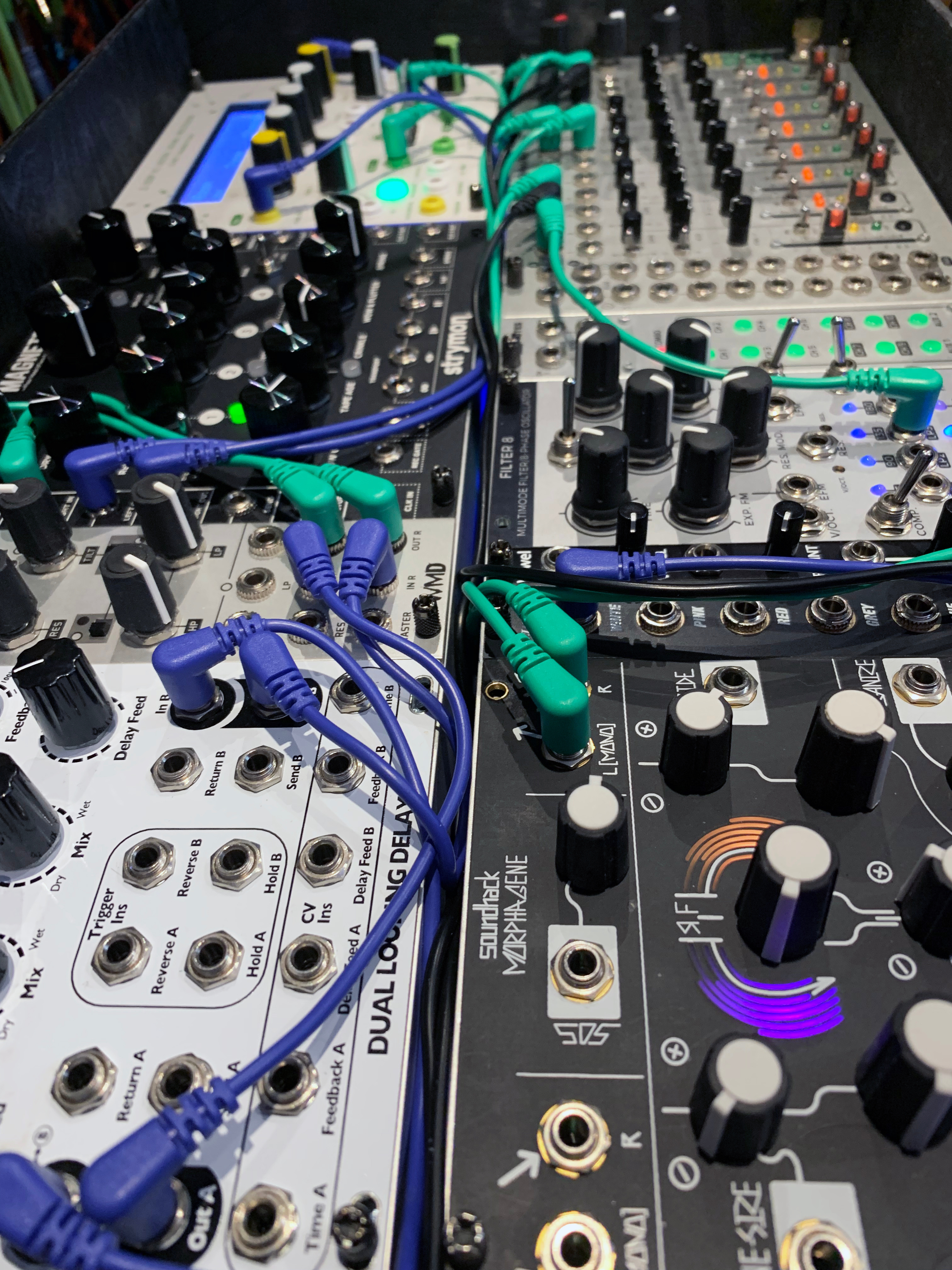

I've already said these are Tendrils cables but I just wanted to share another picture to show how easy access everything is using these.

THE FX ROW

You've seen this in the pictures above anyway but in the show I talk about the "2 bus" FX section. Which is the stereo FX section going right across the whole mix from the master send and return on the output section of the WMD Performance mixer. That's this row (image below).

THE MODULAR GRID

Here's the Modular Grid layout for anyone that wants it.

THE MODULE DEMOS

Here's links to demos for the modules used in the case.

2hp Reverb - https://youtu.be/VF0aecMyk0Q

4ms DLD - https://youtu.be/pf8FjudUIAo

ADDAC System T-Networks - https://youtu.be/LleE1wJrrLY

AJH Synth Next Phase - https://youtu.be/RdSzkz-V6ng

DivKid Mutes - https://youtu.be/w2DKgZHcmiU

Endorphin.es BLCK_NOIR - https://youtu.be/iHlrf9mcE14

Erica Synths PICO DSP - https://youtu.be/n_vR2b6hVcc

Joranalogue Filter 8 - https://youtu.be/u3XrRmUV6-U

Make Noise Morphagene - https://www.youtube.com/playlist?list=PLIWGcb0CxSCFN9uaxO-tD-YDCWLgLWTJN

Make Noise QPAS - https://youtu.be/aYbZaKaU08I

Manhattan Analog CP3 (not DTM) Mixer - https://youtu.be/-Wqvo9I5oTs

Mutable Instruments Clouds - https://youtu.be/IjcDnax9yLY

Mutable Instruments Marbles - https://youtu.be/GEF51zAUr5c

Mutable Instruments Rings - https://youtu.be/O0IHt1JiRvk

This Is Not Rocket Science Tuesday - https://youtu.be/mCShOr-zQME

TipTop Audio Z-DSP - https://youtu.be/as0jIs5qgIE

WMD Performance Mixer - https://youtu.be/uLgzFj01pYw

XAOC Devices Batumi - https://youtu.be/0I3jo8bpfU8

ZVEX Lo-Fi Junky - https://youtu.be/bAZvnr1aKp0

Of course go listen to the podcast episode (http://bit.ly/DivKidLiveCase) if you haven't already. Feel free to leave a comment about anything covered here or in the podcast. All the best and chat to many of you soon. Ta-ra.
